S400 H

  • Category :
  • GNATUS
  • Brand :
  • GNATUS
  • Item Code :
  • S400 H

Product Details

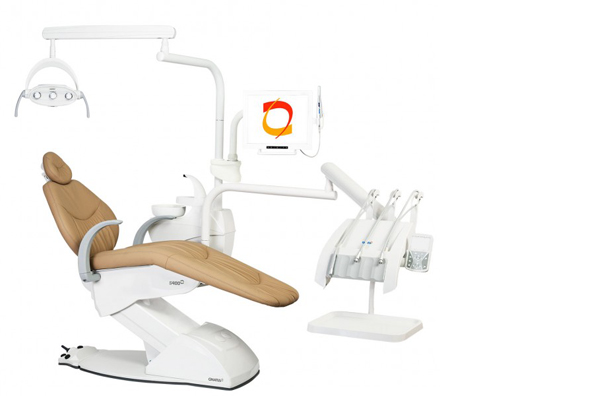

S 400

DENTAL CHAIR

-       Biarticulated headrest lock system
-       Easy fix system
-       1 fixed and 1 folding arm with internal steel structures
-       Integrated box
-       Antiskid edging
-       No need to fix on the floor
-       Wide upholstery with several colors options
-      Joystick control pedal with 3 work positions; spitting position and automatic return to zero position

-       Movements blocking system.



DELIVERY UNIT

 -       Delivery unit with pneumatic arm
-       Delivery unit for ambidextrous dental use
-       Flexible, removable and autoclavable handpiece support, protecting them from impact
-       PAD control with a LED negatoscope
-       Pneumatic lock activation
-       Allows up to 5 working terminals (ST + terminals).
-       Suport tray
-       Available in the pneumatic FLEX, mechanical FLEX and CART models (optional)
-       Bio System



WATER UNIT



- S 400 features an exclusive proximity sensor that automatically activates the water flow into the spittoon, providing greater practicability, patient comfort, security and economy of water.

-       Extended Alcance Arm (Optional)
-       Water unit with proximity sensor and cup holder
-       Removable bowls with dimension around 220mm diameter round, and purpose perfect disinfections
-       With movement of 90th, prioritizing the ergonomics and making possible the assistant’s approach in a better way
-       Water flow adjustment system, which allows cup filling and bowl flush adjustment


DENTAL LIGHT

LED LIGHTING TECHNOLOGY: Provides greater durability of the light source - over of 50.000h - lasts about 1,000 times longer than the conventional halogen lamps.

DIFFERENT MODELS (OPTIONAL)
5 LEDs - light intensity at 35, 25 and 15 000 Lux.
3 LEDs - light intensity at 30, 20 and 10 000 Lux.
3x2 LEDs - light intensity at 35, 25 and 15 000 Lux and orange LED 5000 Lux.

NEW DESIGN: Robust and easy to clean.

RECTANGULAR LIGHT BEAM: Ideal size with wide illumination of the operative field. Minimizes the need for constant repositioning of light beam.

SENSOR LIGHT: Touchless adjustment of light intensity and on/off switch.

REMOVABLE AND AUTOCLAVABLE HOLDERS: Ergonomic design and easy removal

FRONT PROTECTION COVER: Removable, it is made of a durable and transparent material.

POSITIONING OF HOLDERS: System that allows multiple positions of the holders







Read more

Technical Specifications



Technical Specifications

Product Rating:

According to norm NBR IEC 60601-1

Voltage:

127/220 V~ Selectable

Frequency:

50/60 Hz

Type of protection against electric shock:

Class I equipment

Degree of protection against electric shock:

Type B Applied Part

Water leak protection:

IPX0 – Every chair for exams, except for footswitch

IPX1 – Pedal command

Input power:

200VA

Protection fuses:

F1 and F2 (127 or 220V ~) = 5A - delayed action

Lifting capacity:

200 kg distributed load (weight of the patient and equipment + accessories)
