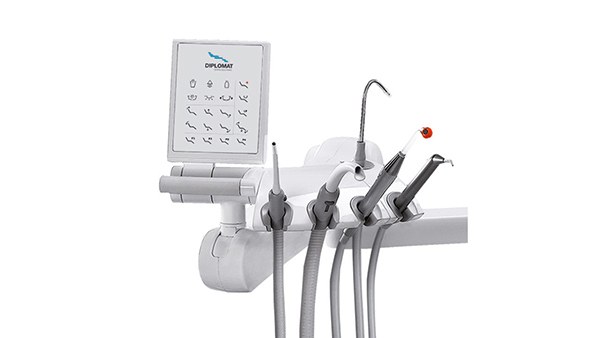

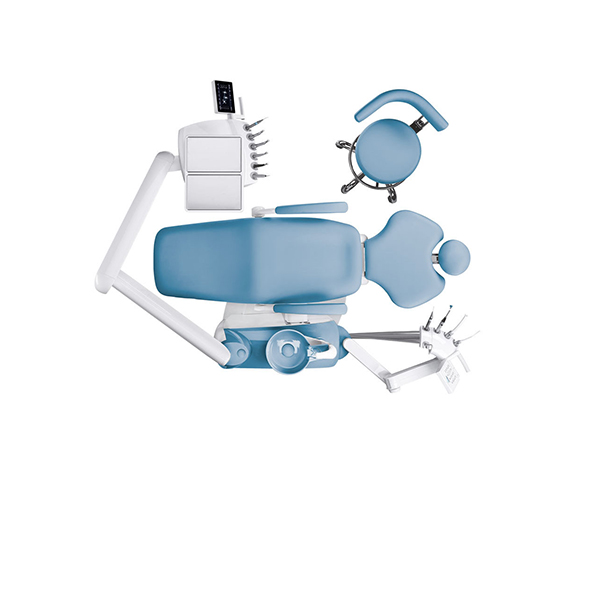

The Diplomat Adept DA 380 is a six-instrument position stationary dental unit. The assistant’s element can be configured with five handpieces. There is also an option of installing an intra-oral camera as an additional sixth instrument. The spittoon block-mounted chair design allows a vertical chair side lift for more comfortable and ergonomic patient positioning during treatment. The programmable chair allows customization and saving up to six custom positions for each four users. The unit’s components (upholstery, spittoon bowl, etc.) are available in a wide range of colors, giving our clients the opportunity to create a unique interior in their dental office.
Thanks to the so-called “Cradle move” the optimum ergonomics and comfortable patient position can be reached within seconds.

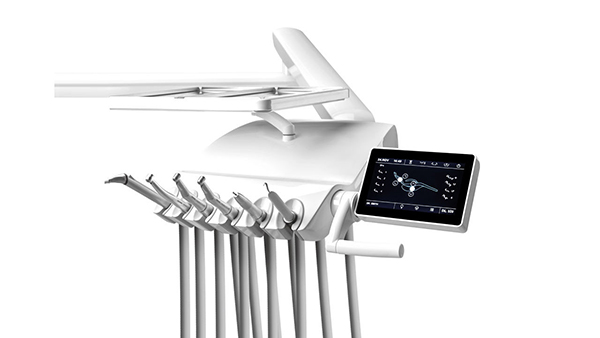

Dentist’s element DA380
The arm of a dentist’s element with an integrated electro-pneumatic brake enables easy and smooth repositioning. The arm is available in a standard or shortened versions (half size). 7-inch multi-language color capacity touch-screen display with an intuitive menu structure allows effortless navigation, control and adjustment of the handpieces and the unit’s parameters.

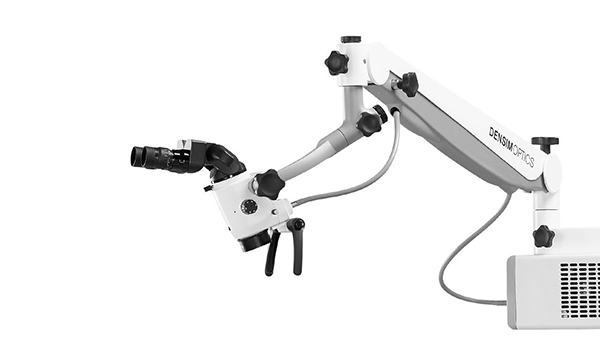

X-ray and dental microscope
With the DA380/DA370 it is possible to fully take advantage of working with X-ray and surgical microscopes.
Power supply 230 V ± 10%
Maximum power input at 230 V/50 Hz 1900 VA + 10%
Input air pressure from 0.45 to 0.8 MPa
Input water pressure from 0.3 to 0.6 MPa
Dental unit & chair weight (netto) 210 kg + max. 25 kg acc.to version
Type of shock protection Class I equipment
Degree of shock protection Applied parts of B type
Water temperature for the cup 25 – 45 °C (with heater fitted)
Tray table recommended max. load 1.5 kg
Side table recommended max. load 3 kg
– chair seat lifting range 320 ÷ 805 mm ± 15 mm
– back rest inclination angle (from vertical position) 13° ÷ 97 ° ± 2°
– chair seat inclination angle (from horizontal position) 3°÷ 21° ± 2°
