Diplomat Consul DC350

  • Category :
  • Brand :
  • Item Code :
  • DC350

Product Details

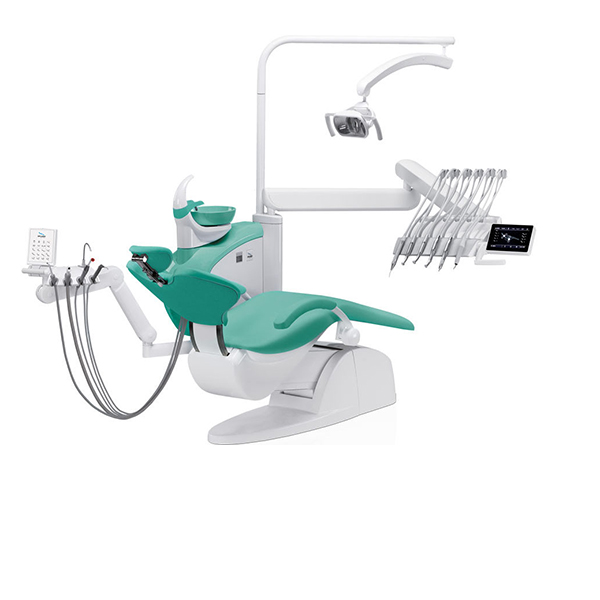

Diplomat Consul DC350 – tailored to your own needs

The Diplomat unit DC350 can be fully tailored to your own needs and preferences. The unit can be equipped with ten instruments besides suction handpieces: six on the dentist’s and four on the assistant’s element. There is also a convenient ergonomic tray-table (stainless steel or plastic) enabling the dentist to keep all instruments and materials within reach. Dental professionals and their patients will truly appreciate an upgraded version of the spittoon block with full electronic or manual control of the removable swiveling spittoon bowl. The spittoon block is fully compatible with dry or wet suction systems with the possibility to integrate Metasys or Dürr amalgam separators and an automatic disinfection system of waterlines and decontamination system of suction hoses.

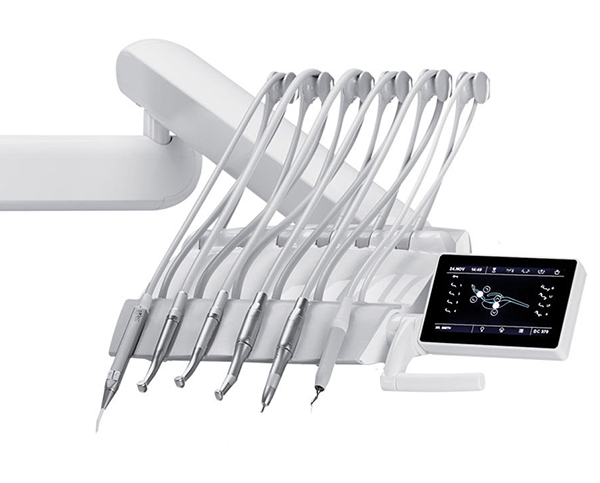

DC 350 Dentist’s element
The dentist’s element is arm-mounted. The arm is supplied with an integrated electro-pneumatic brake system enabling easy repositioning. A capacious tray-table allows you to keep all your accessories at your fingertips. You can control the unit, handpieces and other accessories or customize the settings using a 7-inch multi-language color capacity touch-screen display on the control panel.




Read more

Technical Specifications

Power supply 230 V ± 10%
Maximum power input at 230 V/50 Hz 450 VA + 10%
Input air pressure from 0.45 to 0.8 MPa
Input water pressure from 0.3 to 0.6 MPa
Dental unit weight (netto) – carried 90 kg + max. 20 kg acc. to version
Degree of shock protection Applied parts of B type
Water temperature for the cup 25 – 45 °C (with heater fitted)
Tray table recommended max. load 1.5 kg
Side table recommended max. load 3 kg
Packaging dimensions (length/width/height) 1580 x 1070 x 680 mm
Dental unit weight with packaging – carried 145 kg + max. 40 kg
