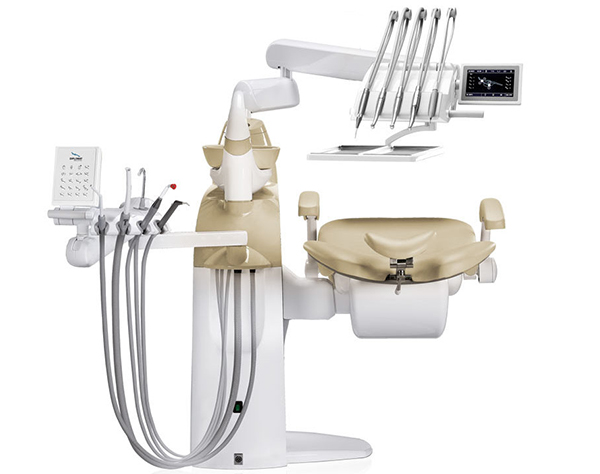

The Diplomat Adept DA270 (upper instruments hose delivery system) is stationary dental unit featuring a spittoon-block mounted chair. Two integrated actuating mechanisms allow easy chair repositioning and backrest angle adjustment. Using the dentist‘s and assistant’s elements or foot control, you can easily navigate the chair’s motions. Our engineers have also thought about safety issues: integrated safety elements safeguard the chair from collisions.
Performance
The ergonomic design of the units allows both the dentist and the assistant to work comfortably in a natural posture and grants easy access to the patient.

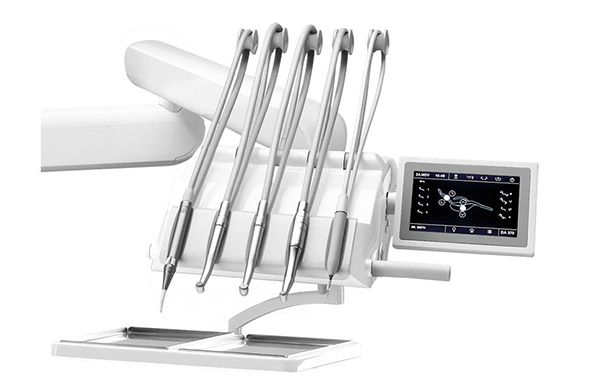

DA270 Dentist’s element
Five-position dentist’s element with a 7-inch color resistive or capacity (optional) display enables easy navigation and control. An electronic coolant water amount control system, independent for each instrument, can be integrated upon request. It is possible to program up to nine customized handpiece instrument settings into the unit memory.

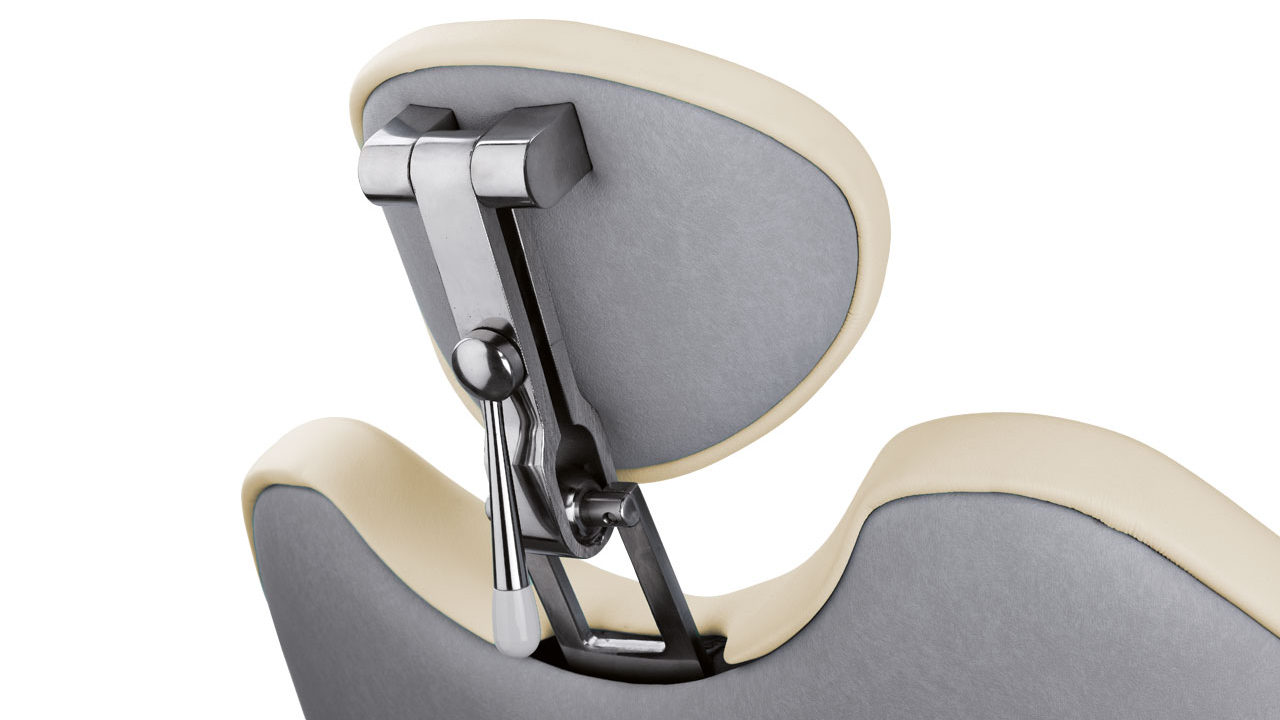

Headrest with 3D ball joint
Stainless steel headrest with 3D ball joint enabling 3-axis positioning for unparalleled comfort even during complex dental treatments. (optional)
TECHNICAL PARAMETERS
Power supply 230 V ± 10%
Maximum power input at 230 V/50 Hz 1550 VA + 10%
Input air pressure from 0.45 to 0.8 MPa
Input water pressure from 0.3 to 0.6 MPa
Dental unit & chair weight (netto) 205 kg + max. 25 kg acc.to version
Type of shock protection Class I equipment
Degree of shock protection Applied parts of B type
Water temperature for the cup 36 ± 5 °C (with heater fitted)
Tray table recommended max. load 1.5 kg
Side table recommended max. load 3 kg
Dental chair
– chair seat lifting range 385 ÷ 825 mm ± 15 mm
– back rest inclination angle (from vertical position) 20°÷ 90° ± 2°
– patient load 200 kg
– operating mode pressure 1:16 (cycle e.g. 25 s run. 400 s rest)
– noise level max. 54 dB
Packaging dimensions (length/width/height) unit: 1370 x 920 x 1290 mm
chair: 1600 x 710 x 760 mm
Dental unit weight with packaging 210 kg + max. 35 kg
Dental chair weight with packaging 110 kg + max. 20 kg
