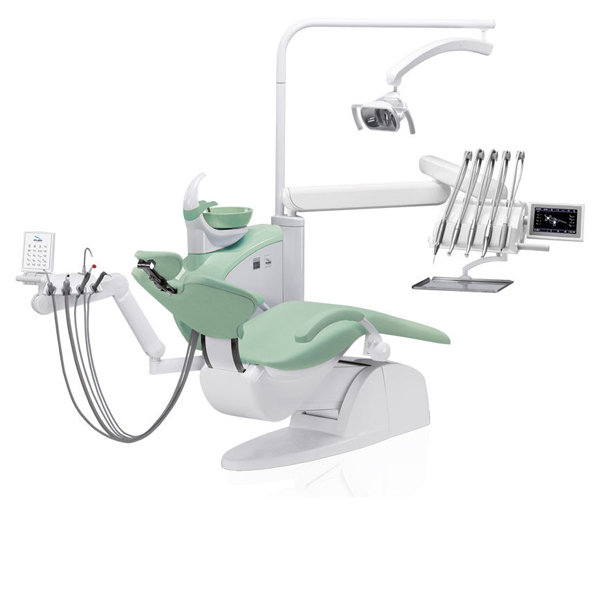

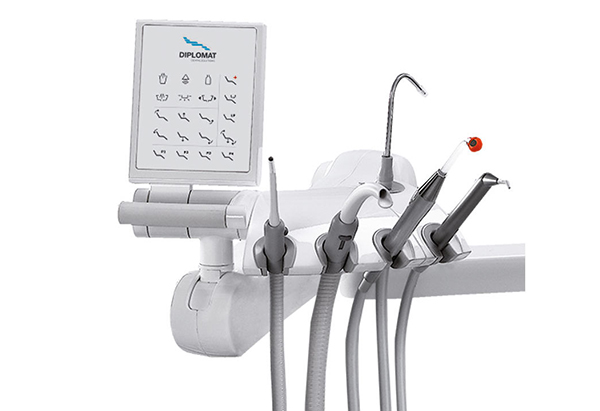

The DC310 (upper instruments hose delivery system) is available in a chair-mounted version. The pantographic arm has a mechanical or electro- pneumatic brake system enabling the dentist to set the dentist block into the optimal working position. The swiveling spittoon bowl can be electronically controlled from both the dentist’s and assistant’s elements. The pantographic arm-mounted assistant’s element is height-adjustable. The assistant can control selected functions using a membrane keyboard.

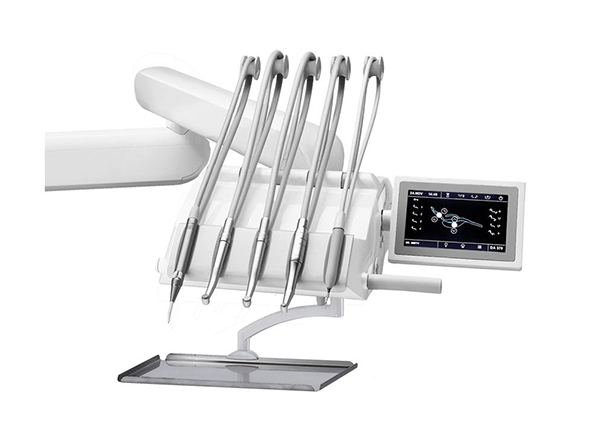

DC310 Dentist’s element
The dentist element is equipped with a 7-inch color resistive or capacity (optional) display enabling easy menu navigation and the control of all functions of both the unit and the chair. The panel features a capacious swiveling stainless steel or plastic tray table with two trays.
TECHNICAL PARAMETERS
Power supply 230 V ± 10%
Maximum power input at 230 V/50 Hz 400 VA + 10%
Input air pressure from 0.45 to 0.8 MPa
Input water pressure from 0.3 to 0.6 MPa
Dental unit weight (netto) – carried 90 kg + max. 20 kg acc. to version
Type of shock protection Class I equipment
Degree of shock protection Applied parts of B type
Water temperature for the cup 36 ± 5 °C (with heater fitted)
Tray table recommended max. load 1.5 kg
Side table recommended max. load 3 kg
Packaging dimensions (length/width/height) 1580 x 1070 x 680 mm
Dental unit weight with packaging – carried 145 kg + max. 35 kg
