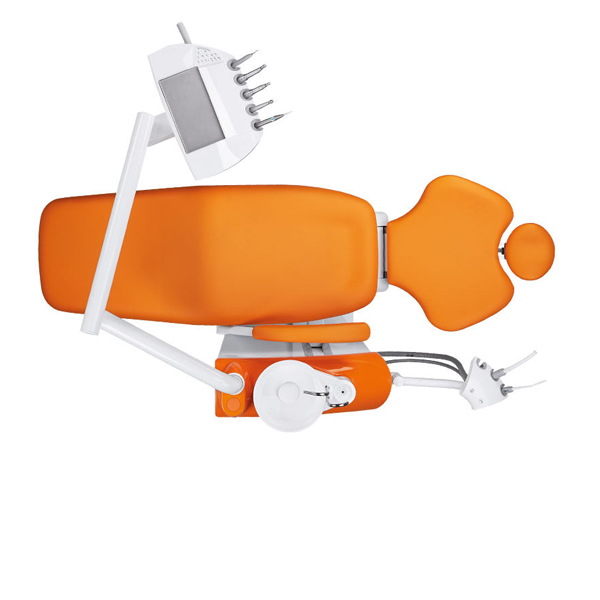

The DA130 consists of spittoon block mounted dental units that are suitable for all fields of dentistry. This model offers great versatility, excellent technical parameters, easy maintenance and reliability for an attractive price. Smart electronics allows the integration of a wide range of accessories, granting full freedom to tailor the unit to one’s own preferences. The configuration of this unit is designed to require minimal space and provide sufficient room for the natural movement of dentist, assistant and patient.
Treatment Space
The ergonomic design of the unit allows both the dentist and the assistant to work comfortably in a natural posture, granting easy access to the patient.

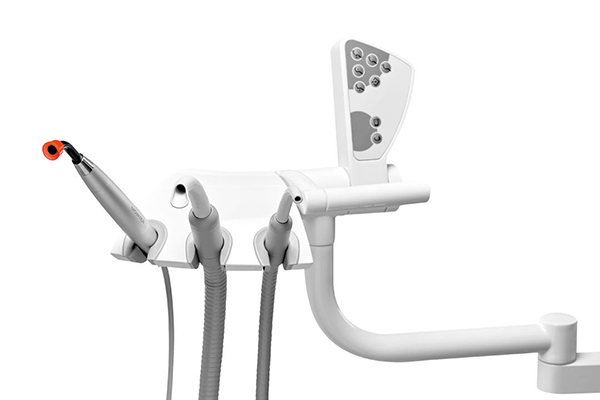

DA130 Dentist’s element
The five-position dentist’s element allows the integration of up to three rotary instruments. The removable stainless steel tray table comes as a standard option.
TECHNICAL PARAMETERS
Power supply 230 V ± 10%
Maximum power input at 230 V/50 Hz 1500 VA + 10%
Input air pressure from 0.45 to 0.8 MPa
Input water pressure from 0.3 to 0.6 MPa
Dental unit & chair weight (netto) 145 kg + max. 25 kg acc.to version
Type of shock protection Class I equipment
Degree of shock protection Applied parts of B type
Water temperature for the cup 33 ± 5 °C (with heater fitted)
Tray table recommended max. load 0.5 kg
Side table recommended max. load 3 kg
Dental chair
– chair seat lifting range 390 ± 10 mm ÷ 795 ± 20 mm
– back rest inclination angle (from vertical position) 18° ± 2° ÷ 88° ± 3°
– patient load 200 kg
– operating mode pressure 1:16 (cycle e.g. 25 s run, 400 s rest)
– noise level max. 54 dB
Packaging dimensions (length/width/height) 1370 x 920 x 1290 mm
Dental unit & chair weight with packaging 210 kg + max. 40 kg
