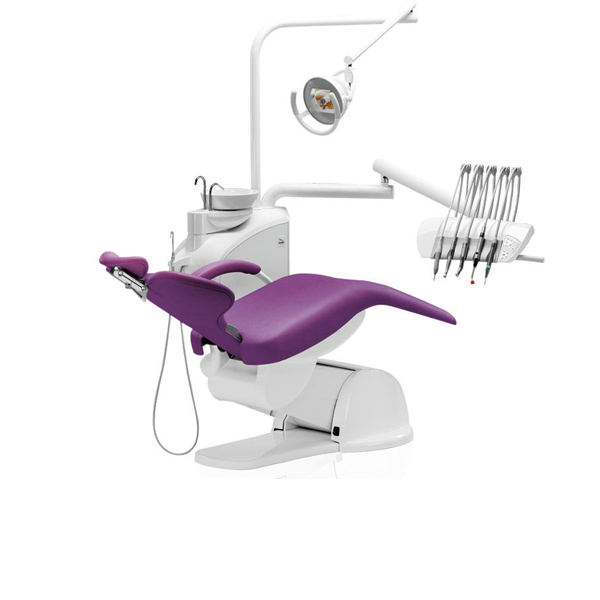

The DC170 (upper instruments hose delivery) is a chair-mounted unit. This model can be equipped with up to five instruments on the dentist’s element and six on the assistant’s side. A simple and reliable design with an up-to-date and compact electronics enables the carrying out all standard types of dental treatment. The light-weight construction, easy cleaning and maintenance, wide range of handpiece options are among the obvious advantages of these DIPLOMAT models.

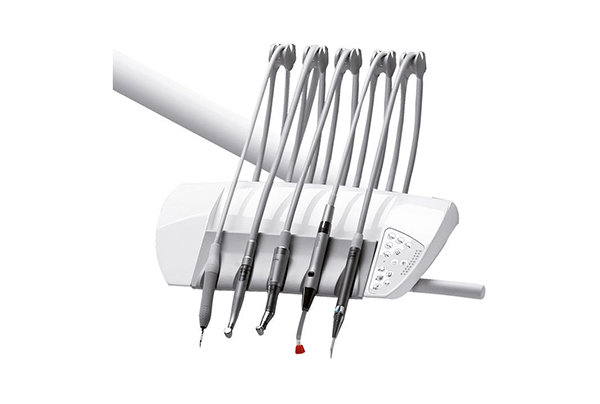

DC170 Dentist’s element
The dentist’s element with a membrane keyboard can be equipped with up to five instruments with lighting. The panel can be equipped with tray tables available in two sizes and an x-ray viewer upon request.
Spittoon Block

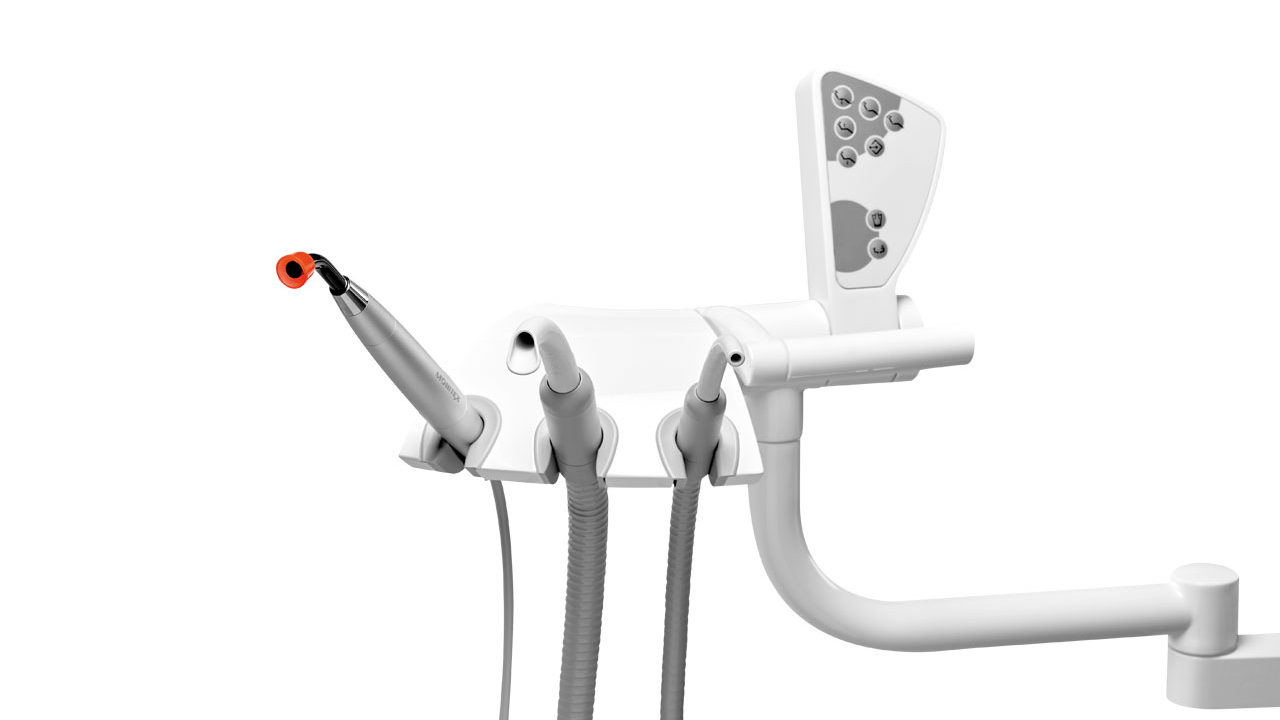

Both the DC170 and DC180 can be equipped with either a fixed or swiveling spittoon bowl upon request. Both versions are compatible with the following versions of the assistant’s element: single saliva ejector or assistant arm version with up to six-position instrument elements.
TECHNICAL PARAMETERS
Power supply 230 V ± 10%
Maximum power input at 230 V/50 Hz 400 VA + 10%
Input air pressure from 0.45 to 0.8 MPa
Input water pressure from 0.3 to 0.6 MPa
Dental unit weight (netto) 65 kg + max. 20 kg acc. to version
Type of shock protection Class I equipment
Degree of shock protection Applied parts of B type
Water temperature for the cup 33 ± 5 °C (with heater fitted)
Tray table recommended max. load 0.5 kg
Side table recommended max. load 3 kg
Packaging dimensions (length/width/height) 1370 x 920 x 610 mm
Dental unit weight with packaging 110 kg + max. 35 kg
