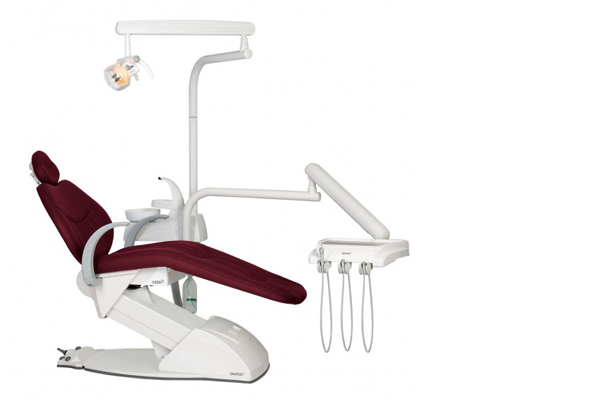

S 300
DENTAL CHAIR
- Biarticulated headrest lock system
- Easy fix system
- 1 fixed and 1 folding arm with internal steel structures
- Integrated box
- Antiskid edging
- No need to fix on the floor
- Wide upholstery with 22 colors options
- Multifunctional and reversible control pedal with 4 work positions; spitting position and automatic return to zero position
- Movements blocking system.
DELIVERY UNIT
- Delivery unit with pneumatic arm
- Delivery unit for ambidextrous dental use
- Flexible, removable and autoclavable handpiece support, protecting them from impact
- PAD control with a LED negatoscope
- Pneumatic lock activation
- Allows up to 5 working terminals (ST + terminals).
- Suport tray
- Available in the pneumatic FLEX, mechanical FLEX and CART models (optional)
- Bio System
WATER UNIT
- S 300 features an exclusive proximity sensor that automatically activates the water flow into the spittoon, providing greater practicability, patient comfort, security and economy of water.
- Extended Alcance Arm (Optional)
- Water unit with proximity sensor and cup holder
- Removable bowls with dimension around 220mm diameter round, and purpose perfect disinfections
- With movement of 90th, prioritizing the ergonomics and making possible the assistant’s approach in a better way
- Water flow adjustment system, which allows cup filling and bowl flush adjustment
DENTAL LIGHT
LED LIGHTING TECHNOLOGY: Provides greater durability of the light source - over of 50.000h - lasts about 1,000 times longer than the conventional halogen lamps.
DIFFERENT MODELS (OPTIONAL)
5 LEDs - light intensity at 35, 25 and 15 000 Lux.
3 LEDs - light intensity at 30, 20 and 10 000 Lux.
3x2 LEDs - light intensity at 35, 25 and 15 000 Lux and orange LED 5000 Lux.
NEW DESIGN: Robust and easy to clean.
RECTANGULAR LIGHT BEAM: Ideal size with wide illumination of the operative field. Minimizes the need for constant repositioning of light beam.
SENSOR LIGHT: Touchless adjustment of light intensity and on/off switch.
REMOVABLE AND AUTOCLAVABLE HOLDERS: Ergonomic design and easy removal
FRONT PROTECTION COVER: Removable, it is made of a durable and transparent material.
POSITIONING OF HOLDERS: System that allows multiple positions of the holders
Product Rating:
According to norm NBR IEC 60601-1
Voltage:
127/220 V~ Selectable
Frequency:
50/60 Hz
Type of protection against electric shock:
Class I equipment
Degree of protection against electric shock:
Type B Applied Part
Water leak protection:
IPX0 – Every chair for exams, except for footswitch
IPX1 – Pedal command
Input power:
200VA
Protection fuses:
F1 and F2 (127 or 220V ~) = 5A - delayed action
Lifting capacity:
200 kg distributed load (weight of the patient and equipment + accessories)
