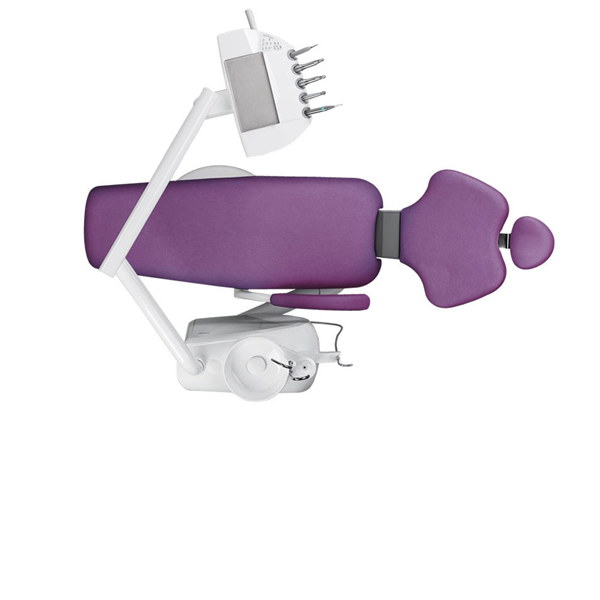

The DC180 (bottom instruments hose delivery) dental unit features a simple and reliable design with up-to-date and compact electronics, enabling the carrying out of all standard types of dental treatment. Built-in electronics allows easy the integration of a wide range of instruments. An independent coolant water amount control system for each instrument can be integrated upon request.
Performance
The ergonomic design of the units allows both the dentist and the assistant to work comfortably in a natural posture, granting easy access to the patient.
DC180 Dentist’s element
The five-position dentist’s element features an upgraded membrane keyboard enabling easy navigation and a tray table with a removable sterilizable handle cover.
TECHNICAL PARAMETERS
Power supply 230 V ± 10%
Maximum power input at 230 V/50 Hz 400 VA + 10%
Input air pressure from 0.45 to 0.8 MPa
Input water pressure from 0.3 to 0.6 MPa
Dental unit weight (netto) 65 kg + max. 20 kg acc. to version
Type of shock protection Class I equipment
Degree of shock protection Applied parts of B type
Water temperature for the cup 33 ± 5 °C (with heater fitted)
Tray table recommended max. load 0.5 kg
Side table recommended max. load 3 kg
Packaging dimensions (length/width/height) 1370 x 920 x 610 mm
Dental unit weight with packaging 110 kg + max. 35 kg
